HD SDI To RJ45 / BNC Connector UTP Video Extender Over CAT5 / 6 Kit 60m Distance

Name: HD SDI To RJ45 BNC Connector UTP Video Extender Over CAT5 6 Kit 60m Distance
Brand: E-link
Price: 1 USD

Brand Name : E-link

Model Number : LNK-DTS050

Certification : CE/FCC/Rohs

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000pcs Per Month

Delivery Time : 4-6 days

Packaging Details : Standard export package

Connector : 1XRJ45,1xBNC

Speed : 270Mb/s, 1.485Gb/s (automatic selection)

Distance : 60m

Power Supply : DC12V/1A

Frequency Response : DC DC To 8MHz

Power : 12-24VDC

Contact Now

HD-SDI Video Extender over CAT5 / 6 Kit

Model: LNK-DTS050 Series

Overview

LNK-DTS050 allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.

Features

SDI Standard: HD-SDI, SD-SDI
Up to 50m / 160ft via CAT5e cable
Up to 60m / 200ft via CAT6 cable
Supports SDI-SMPTE 259M-C (270Mbps);
HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
LED diagnostics: sync, SDI auto-detection
5V~24V DC

Technical Indexes

Model	LNK-DTS050
Type	Transmitter	Receiver
Standard Supported	SMPTE 259M (270Mb/s), SMPTE 292M
Speed	270Mb/s, 1.485Gb/s (automatic selection)
Support Input Format	SD: 525i @ 59.94Hz, 625i @ 50Hz
	HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
	720p @ 50Hz / 59.94Hz / 60Hz
	1080i @ 50Hz / 59.94Hz / 60Hz
	1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
	@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz
Indicators	Power on (on both end)
	Sync detection (on both end)
	Link between the two units working (on both end)
Connectors	1x BNC 75 ohm female
	1x RJ45 of CAT5e/6 unshielded or shielded twisted pair
	1x power plug, 2.1mm
Maximum Distance	All resolutions
	CAT5 UTP/STP: 50m / 160ft
	CAT6 UTP/STP: 60m / 200ft
Power Supply	DC12V/1A
Power Consumption	2.5W (Tx and Rx)
Operating Temperature	-10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature	-30°C ~ 70°C / -22°F ~158°F
*Dimensions (LWH)*	98 x 65 x 28mm / 3.85x 2.55 x 1.1 inches

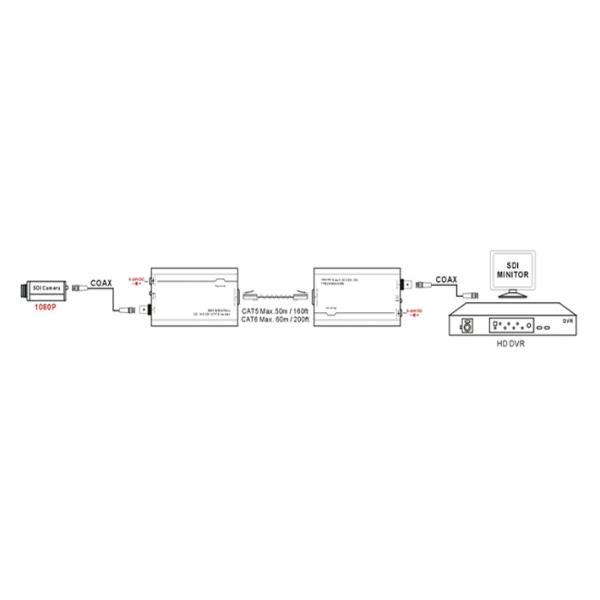

Application

HD SDI To RJ45 / BNC Connector UTP Video Extender Over CAT5 / 6 Kit 60m Distance
